PosiTest AT

The PosiTest AT series calculates the adhesion of coatings to metal, wood, concrete and other rigid substrates through measuring the force required to pull a specified test diameter of coating or material away from its substrate using hydraulic pressure. Available in both manual and automatic models.

Select from four Stand-offs – 20 mm, 50 mm, 50×50 mm Tile and 50 mm C1583
Environmentally sealed enclosure – weatherproof, dustproof and shockproof – meets or exceeds IP65
Inexpensive, single-use dollies eliminate cleaning for re-use and can be kept as a permanent record
Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces
10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths
Calibrated and certified to ± 1% accuracy using a NIST traceable load cell
Certificate of Calibration showing traceability to NIST included (Long Form)

Conforms to international standards including ASTM C1583/D4541/D7234/D7522, ISO 4642/16276-1,
EN 1542/12004-2, AS/NZS 1580.408.5 and others

For further information see our Inspection and Testing Equipment brochure

FEATURES

Simple

Inexpensive, single-use dollies eliminate cleaning for re-use and can be kept as a permanent record.
10, 14, 20 or 50 mm dollies maximise capability and measurement resolution across a wide range of bond strengths.

Durable

Environmentally sealed enclosure – weatherproof, dustproof and shockproof – meets or exceeds IP65.

Accurate

Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces
Calibrated and certified to ± 1% accuracy using a NIST traceable load cell.

MODELS

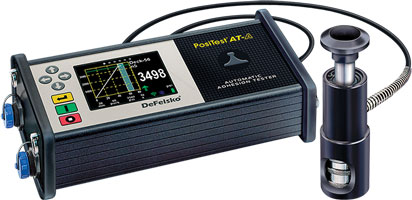

PosiTest AT-A Automatic

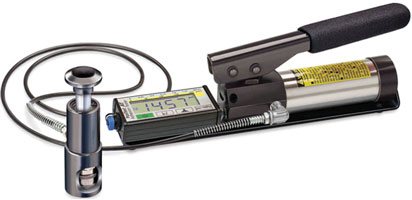

PosiTest AT-M Manual
