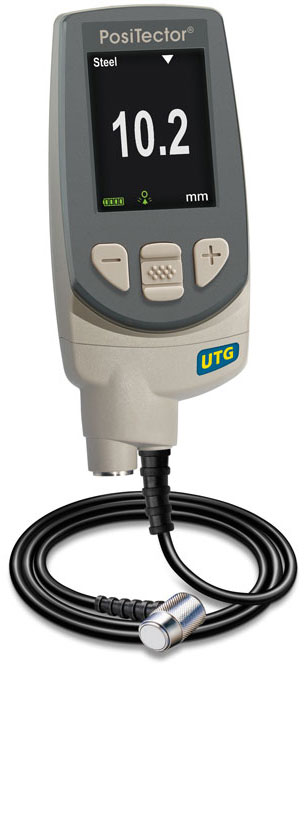

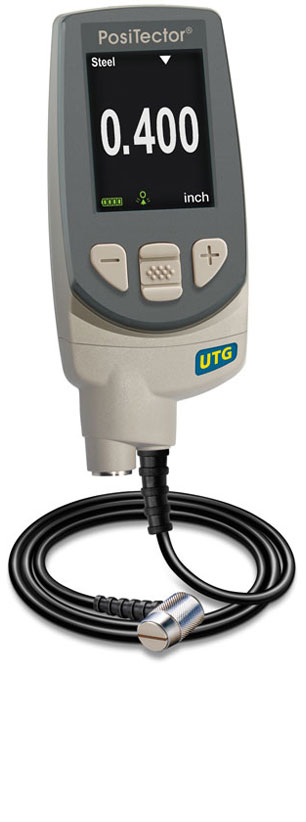

PosiTector UTG

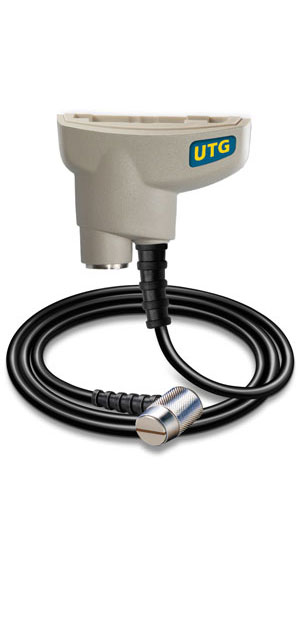

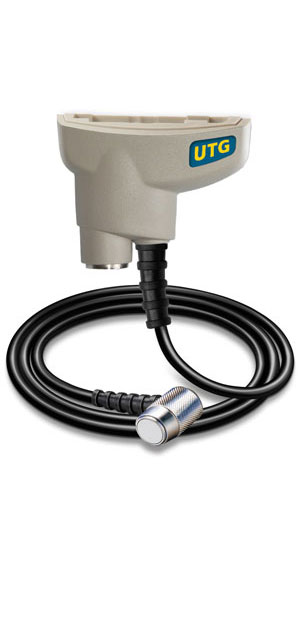

The PosiTector ultrasonic thickness gauge measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Choose from Corrosion or Multiple-Echo probes. Multiple-Echo probes feature thru-paint capability. Advanced models included raw A-scan with adjustable gain and B-scan.

Compatible with – Standard and Advanced body. Conforms to ASTM E797

For further information see our Inspection and Testing Equipment brochure

FEATURES

Simple

Large, easy-to-read, graphics LCD.
Pre-programmed velocities – Simply select from a list of common materials or enter your own with ease.
Smart Couple™ – Eliminates inadvertent decoupling – ideal for analysing large areas using multiple passes.
Enhanced one-handed menu navigation.
Flashing display — ideal in a noisy environment.
RESET feature instantly restores factory settings.

Durable

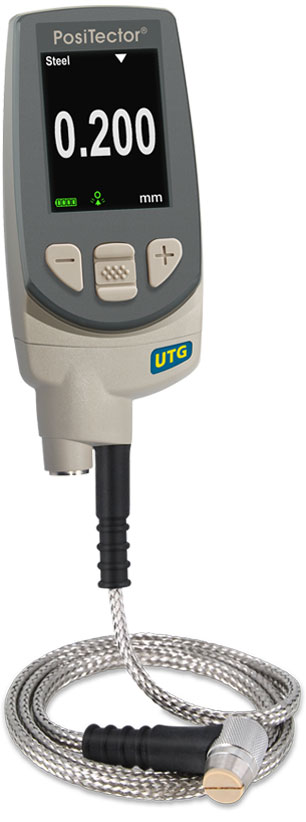

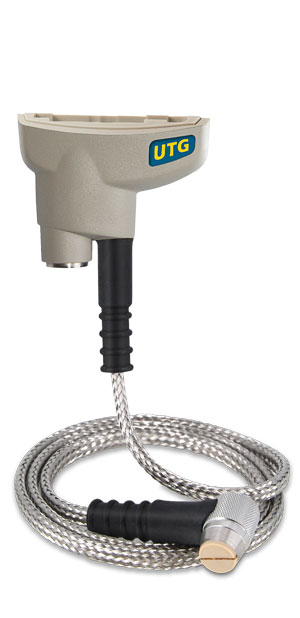

Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only).
Impact resistant lens.
Wear-resistant probe tip.
Shock-absorbing, protective rubber holster with belt clip.
Two year warranty on gauge body AND probe.

Accurate

Precision ultrasonic transducers provide fast, accurate readings
Certificate of Calibration (Long Form) showing traceability to NIST included
Conforms to national and international standards including ASTM E797.
Built-in temperature compensation ensures measurement accuracy.

Versatile

High Contrast backlit display for bright or dark environments.
Single or two point adjustment.
Inch/mm switchable.
Selectable display languages.
Flip display enables right-side-up viewing.
Extended cables available (up to 20 m/60 ft) for underwater or remote measuring.
Uses alkaline or rechargeable batteries (built-in charger).

Powerful

Min Scan – measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area.
Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring.
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits.
Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
Software Updates via web keep your gauge current.
Screen Capture – record and save image into USB flash memory for record keeping and review.

Software Solutions for viewing, analysing & reporting data
Every stored measurement is date and time stamped

MODELS

PosiTector UTG
